We  present, the TLC / FID - FPD Analyser

"IATROSCAN® MK6 / MK6s"

Complete procedure of spotting and analysing with the Iatroscan MK6s


1. Blank scanning

This effectively removes all organic impurities on the rods and optimizes activation conditions before sampling.

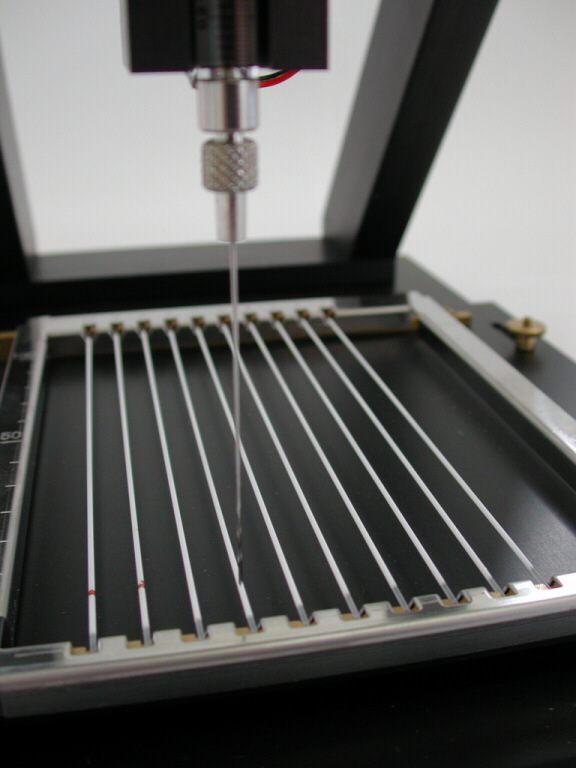

2. Sample Spotting


The sample (normally about 1m l) is spotted onto the rods by means of an automatic spotter.

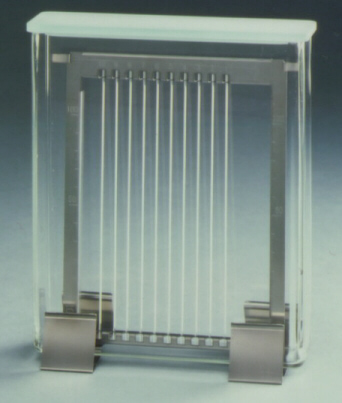

3. Separation

The rods in their rod holder are placed in the development tank and subjected to solvent development to effect sample separation.

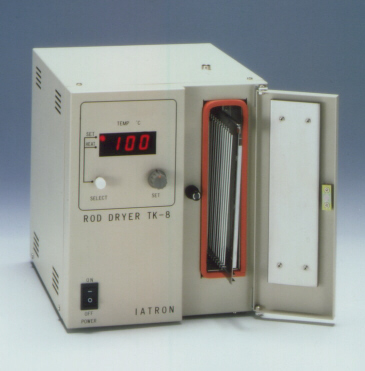

4. Solvent removal

After development the developing solvents adsorbent on the rods are evaporated

TR 8.JPG (52383 Byte)


5. Insert the Rods

Put the rod holder into the Iatroscan MK6 /6s, close the cover and put on the Iatroscan.


scanning 7.jpg (211613 Byte)

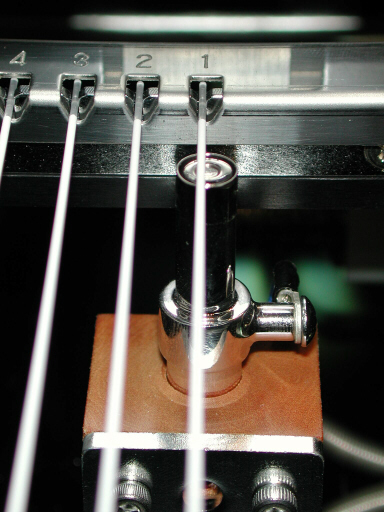

6. Measurement

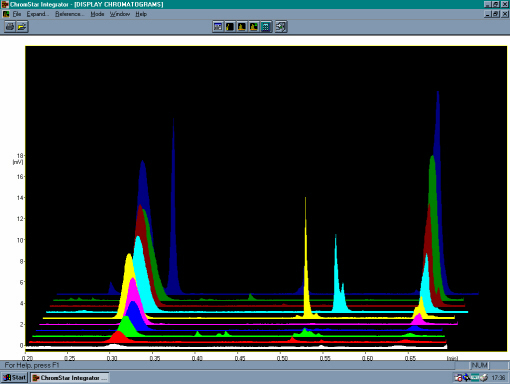

After solvent removal, activate the START button to start the automatic measurement of the first of ten Chromarods and start SES ChromStar to collect the chromatographic data.
