Equipment that measures permeation through membranes

SES Franz Diffusion Cell - V9 Stirrer

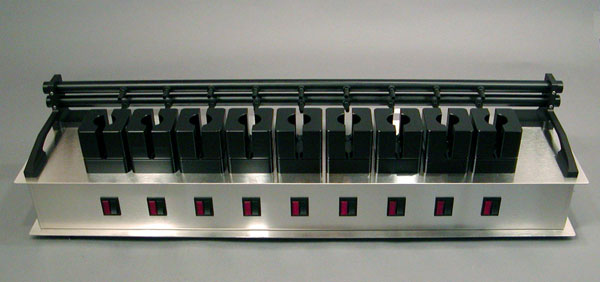

SES V9-CB Stirrer - Front view

This stirrer is a 9-station magnetic stirrer for Franz Cells. It is 31" or 79cm long,
the center-to-center distance between the cell holders is 2.6" or 6.6cm.

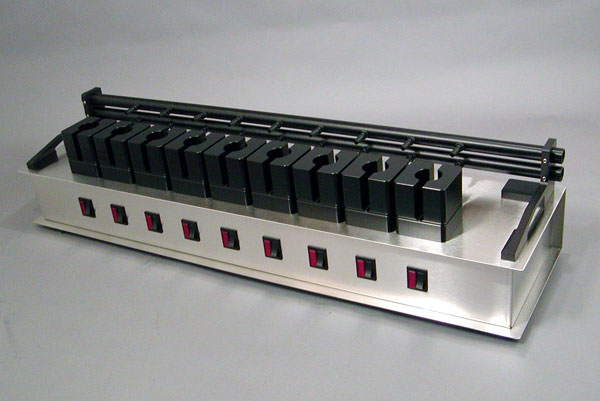

SES V9-CB Stirrer - Oblique view

This stirrer with black anodized aluminum cell holders is available in 110/120 volt and 220/240 volt
configurations with power cords appropriate for the customers electrical supply.

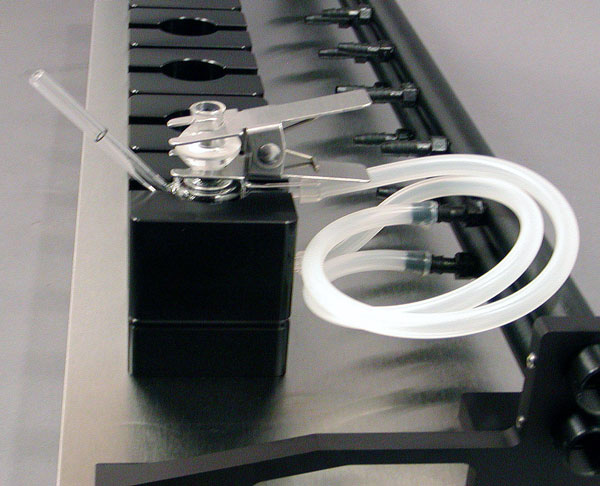

SES V9-CB Stirrer - End View with Franz Cell & Tubing

This photograph shows how to connect a jacketed Franz Cell to the water supply manifolds
of any multi-cell PermeGear magnetic stirrer. Shutoff valves may be placed in each length
of tubing if the user wishes to remove the cell and leave tubing sections attached to the
arms of the cell's heating jacket. Another way to remove one or more cells is to place a
length of tubing from the hose barb fitting in one manifold to the corresponding fitting in
the other manifold. The cell in the photo is a jacketed Franz Cell with a flat ground joint,
clear glass, and 5ml receptor volume. This cell is the most common Franz Cell in use today.
